Products from



Products

uNET MINI uNET COMPACT uNET STANDARD uNET MAXI
Click here to view Click here to view Click here to view

CHANNELS UP TO

2 x 2,
2 x 2 USB STREAMING
16 32,
32 x 32 USB STREAMING,
32 CHANNELS USB
RECORDING/PLAYBACK
128,
64 x 64
NETWORK TO USB
TO LOCAL BRIDGING
2 x 2 x 2   8 x 8 x 8
SUPPORTED SAMPLING RATES
44.1, 48, 88.2, 96, 192 kHz *
AES67
RAVENNA
USB HOST
Data Tunnelling
PCB FOOTPRINT 40mm x 44mm 60mm x 75mm 60mm x 78mm TBC

* support for 192kHz sampling rates, requires optional software license

If you would like more information you can download the brochure here


Archwave‘s AudioLAN platform offers a range of cost-effective modules from 4 to 32 channels.

All modules are controllable via an attractive and intuitive AES67 and RAVENNA compliant web interface and optional support for Command & Control via AES70 or CopperLan.

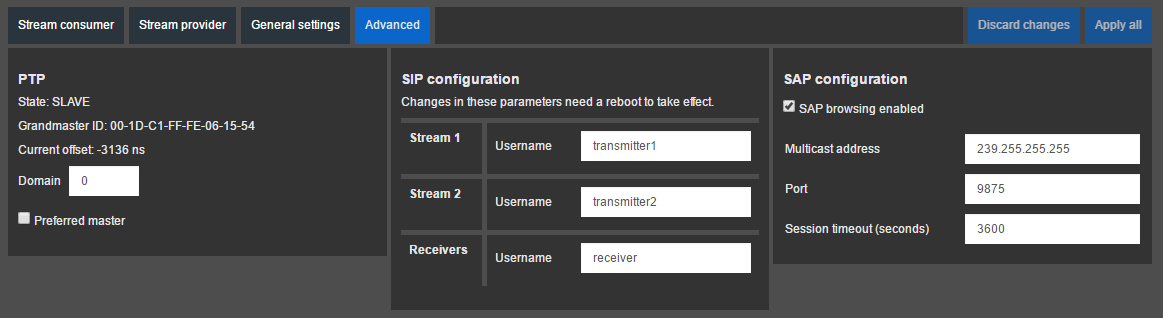

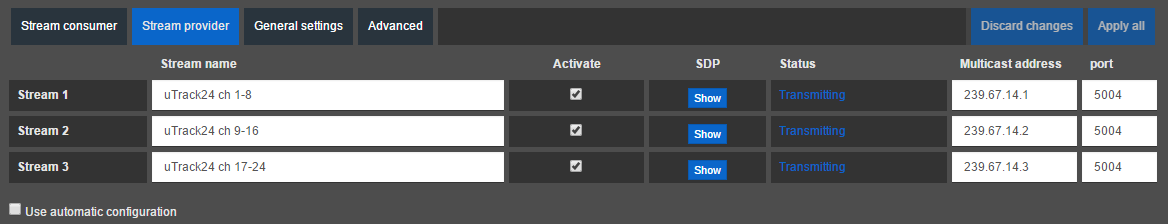

SCREENSHOTS

Archwave AudioLAN solutions are of interest to manufacturers of professional audio and video equipment, musical instruments and consumer electronics, who wish to combine audio networking based on open standards with quick time-to-market and rapid deployment.

All modules are controllable via a diverse array of interfaces: Be it through the attractive and intuitive AES67 and RAVENNA compliant web interface, be it through SPI, optional support for Command & Control via AES70 or CopperLAN, or even utilizing our ‘open tunnels’ allowing you to send any kind of control exchange via the network.




FEATURES

  • NATIVE SUPPORT FOR AES67, AES70, RAVENNA

  • INTEROPERABLE WITH DANTE IN AES67 MODE

  • DATA TUNNELLING FOR COMMAND AND CONTROL

  • CROSS-PLATFORM CONNECTION MANAGER

  • ETHERNET + USB + I/O BRIDGING

  • BUILT-IN WEB INTERFACE

  • EASY TO DESIGN AND INTEGRATE

  • RAPID TIME TO MARKET

  • COST-EFFECTIVE

  • ATTRACTIVE UI






"BUILT ON OPEN STANDARDS"

"EASY INTEGRATION"

"QUICK TO BRING TO MARKET"
